Riders with a PF30 frame running a Shimano or other 24 mm spindle crank who want to stop press-fit creaks.

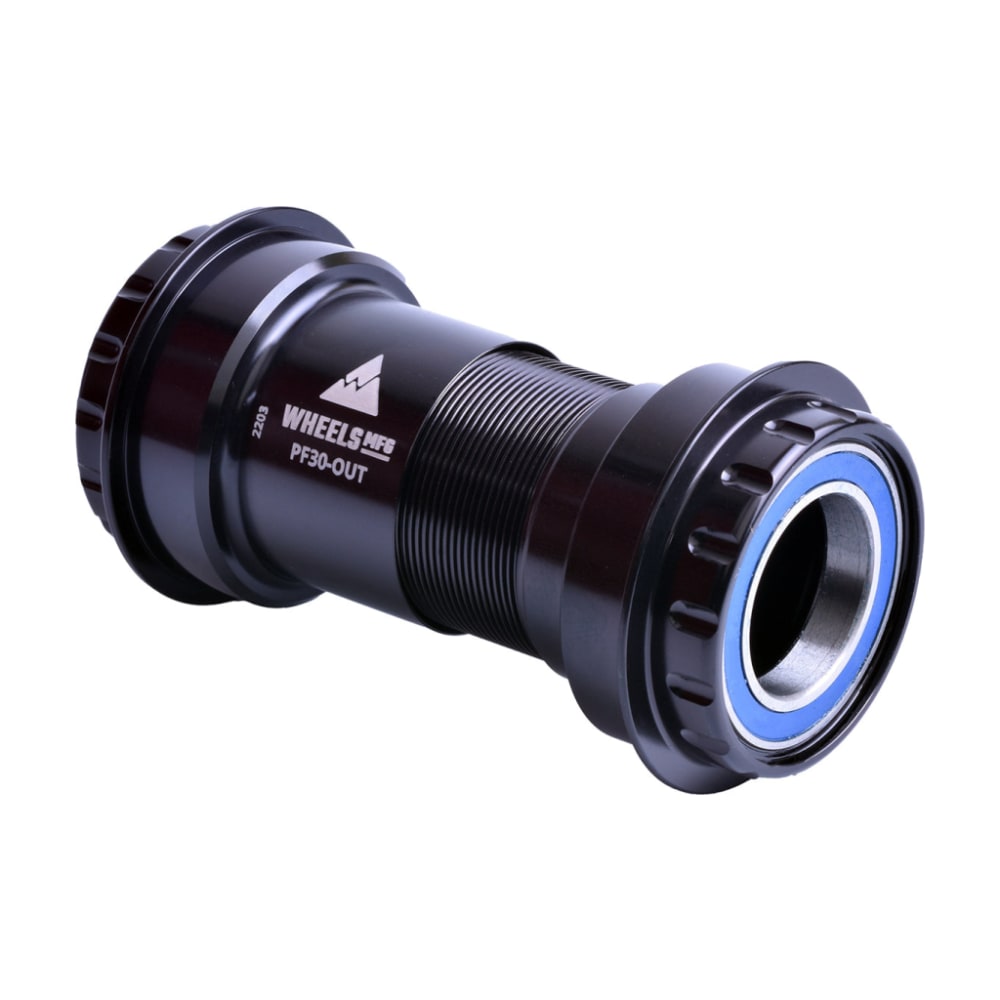

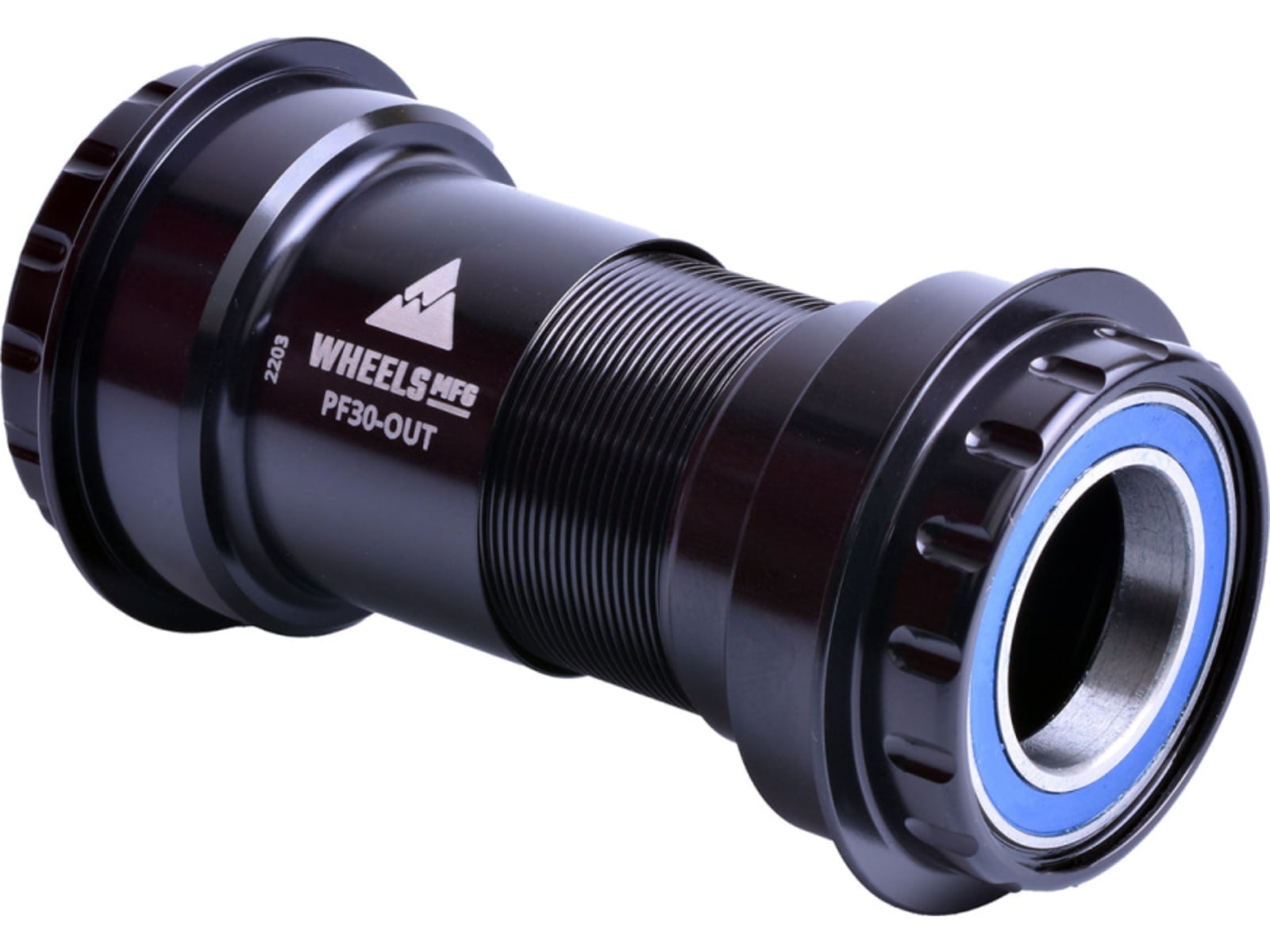

PF30 frames have a big 46 mm shell, which can creak and wear bearings when cups are simply pressed in. The Wheels Manufacturing PF30 Outboard bottom bracket uses two machined aluminium cups that thread together inside the shell, holding everything square and tight.
This version is made to fit 24 mm spindle cranks such as Shimano straight into a PF30 frame with no adapters. The result is less creaking, smoother running, longer bearing life and quick bearing swaps down the track.
It comes with silicone dust seals and 0.5 mm and 1.0 mm spindle spacers to set the crank up properly.
No more creaks
Thread-together cups keep the bottom bracket stable in the shell.
Direct fit
24 mm cranks into PF30 frames without adapters.
Easy servicing
Quick bearing replacement when the time comes.
Seals and spacers included
Silicone dust seals and spindle spacers in the box.
Fit
Build
In the box
Thread-together design
The two cups screw into each other inside the shell, keeping the bearings aligned and the unit stable for a quieter, longer-lasting bottom bracket.
Great for
Maybe not for
For PF30 shells with a 46 mm inside diameter and 24.00 mm spindles. FSA MegaExo spindles can measure between 24.00 and 24.07 mm; a 24.07 mm spindle will not fit without Wheels FSA 24.07 bearings.
Install with the right tools
The cups need to go in square and be tightened together with the correct Wheels Mfg tools. A shell that is out of round or damaged can still creak, so we check the frame before fitting. Book it in and we will do it properly.
Bottom brackets and small parts machined in the USA.
Wheels Manufacturing is an American component maker best known for its bottom brackets, adapters and derailleur hangers. Its thread-together bottom brackets are machined in the USA and use Enduro sealed bearings.
