Ideal for the e-bike rider or home mechanic replacing a worn or damaged left-side crank arm on a compatible Shimano STEPS commuter, city or hybrid bike.

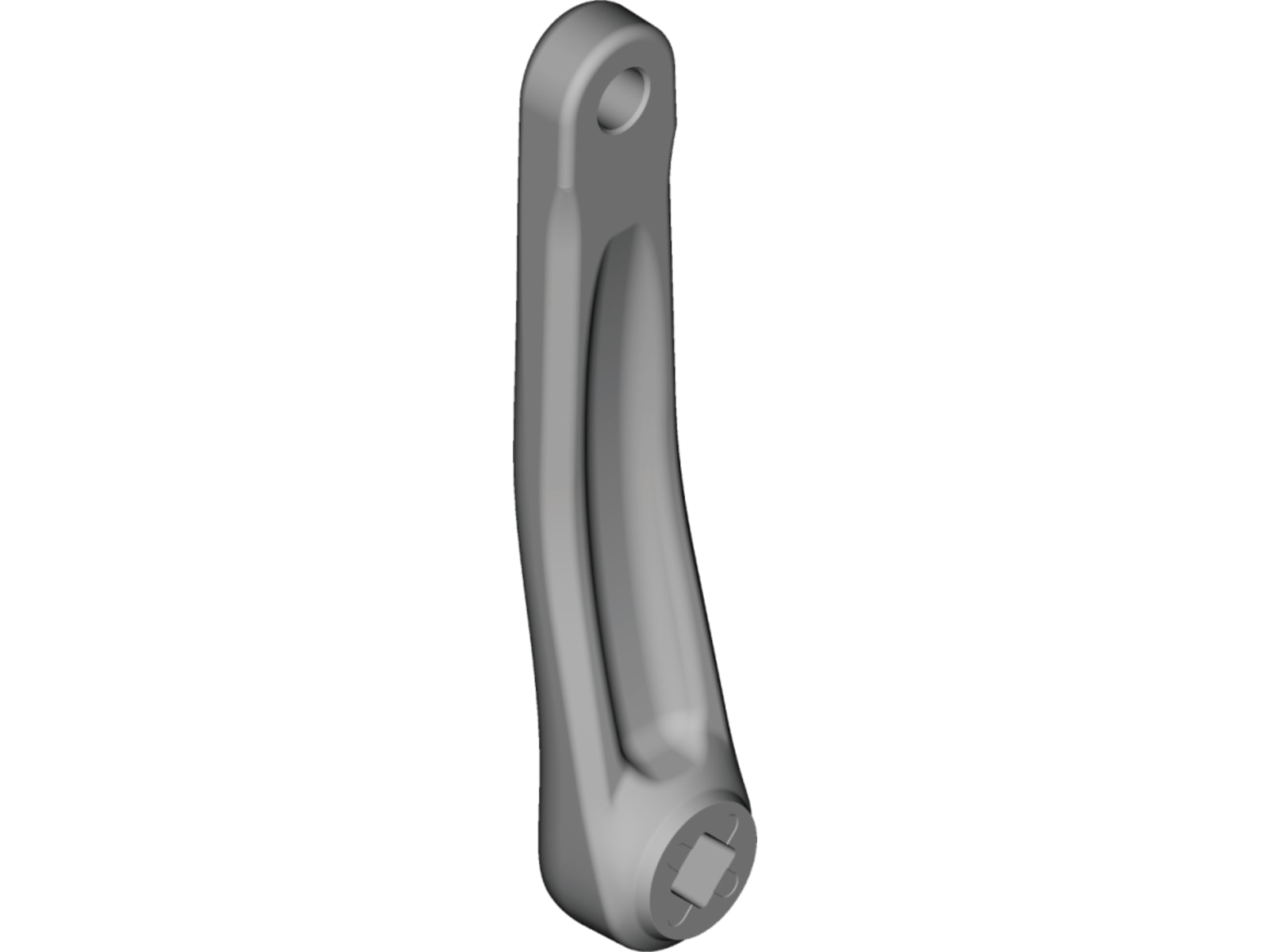

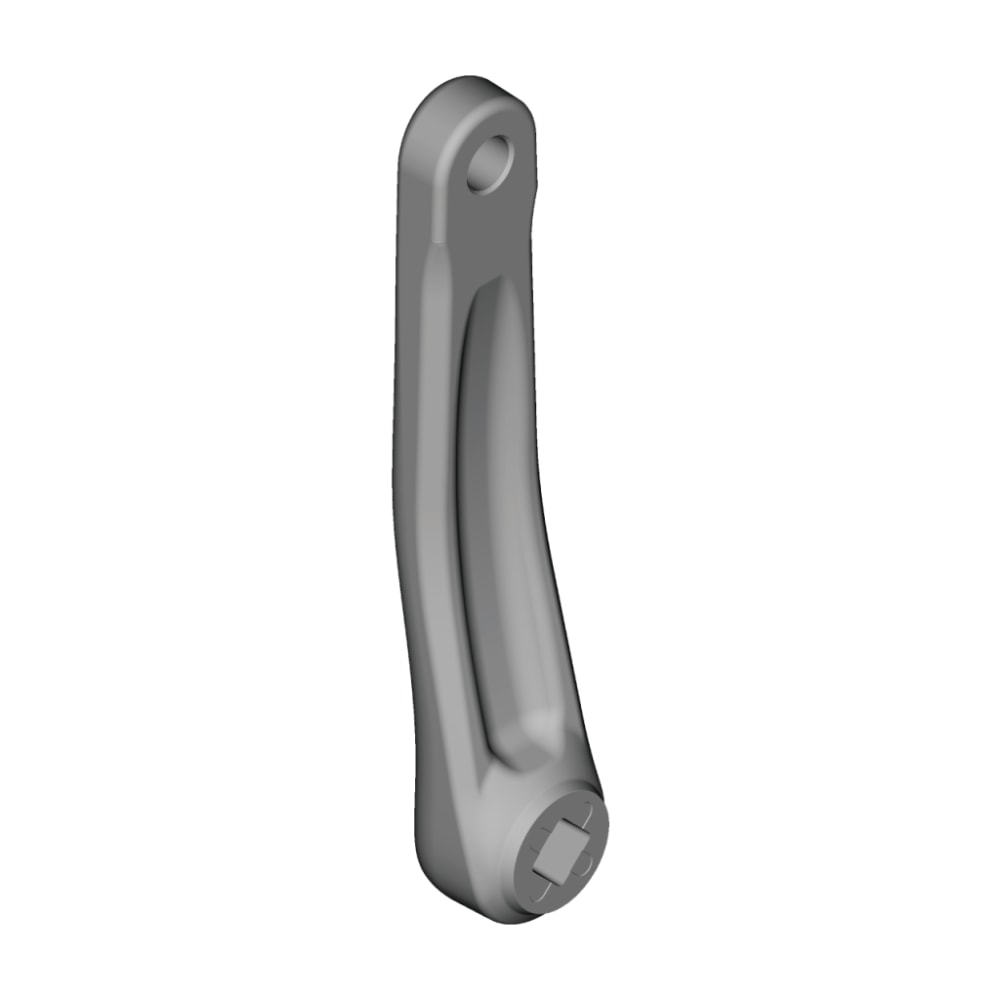

The Shimano FC-E5010 Left Hand Crank Arm 170mm is a genuine replacement arm for Shimano STEPS e-bikes using the FC-E5010 crank setup. It’s a left-hand arm only, so it’s the right choice when you need to replace one damaged side rather than buy a complete crankset. The 170 mm length suits riders who want to match their existing setup and keep the bike’s pedalling feel consistent.
Built from aluminium with a square axle interface, this arm is designed for everyday e-bike duty where reliability matters more than flash. The 185 mm Q-factor and FC-E5010 platform are used with Shimano’s E5000 / E5080-series systems, and Shimano’s current compatibility information also lists FC-E5010 within a wide range of approved drivetrain combinations around those drive units.
For the right buyer, this is the simple, sensible repair part: correct fit, clean Shimano finish, and no guesswork if your bike already uses FC-E5010. The main thing to check before ordering is compatibility. You’ll want to confirm your bike is running an FC-E5010 left arm, the correct 170 mm length, and a square-profile interface rather than Shimano’s 24 mm-style e-bike crank standards.
Left-hand replacement arm only
A practical fix when only the non-drive-side arm needs replacing, without paying for a full crankset.
170 mm crank length
Matches a common commuter and e-bike fit, and helps keep your bike’s original pedalling position unchanged.
Shimano STEPS FC-E5010 fit
Made for bikes using the FC-E5010 crank platform, so it suits like-for-like replacement jobs.
Square axle interface
Designed for square-profile crank fitment, which is essential if your existing system is not a 24 mm e-bike crank standard.
Aluminium construction
Keeps the arm durable and practical for regular urban, hybrid and e-bike use.
E-bike specific application
Built for Shimano STEPS-equipped bikes rather than general acoustic bike crank swaps.
185 mm Q-factor platform
Maintains the wider stance used on this crank family for the intended Shimano STEPS setup.
General
Materials & construction
Dimensions & weight
Compatibility
Sizing
Great for
Maybe not for
Check three things before ordering: left side only, 170 mm length, and square interface. Shimano compatibility documents list FC-E5010 with DU-E5000, DU-E5080, DU-E5080-H and DU-E5100 system families in approved combinations, and retailer listings also place it with E5000 / E5080-series setups. If your bike uses an FC-E5000 or FC-E6000/E6100-style crank, don’t assume interchangeability just because the arm looks similar.
vs Shimano STEPS FC-E5000 E-Bike Crank Arm
A close Shimano alternative for city and urban e-bikes, but it is a different crank family with a different finish and its own compatibility requirements.
vs Shimano STEPS FC-E6100 E-Bike Crank Arm
A more modern Shimano e-bike crank option, but it uses a different axle standard and a narrower Q-factor.
Match the old arm exactly
On a replacement like this, the safest path is to match your existing crank model and crank length exactly. If the bike came with FC-E5010 170 mm, this is the straightforward replacement.
Confirm the interface before buying
The big compatibility checkpoint is the square axle profile. Shimano also has e-bike crank arms built around 24 mm interfaces, and they are not a direct substitute.
This is a one-side repair part
You’re buying the left arm only. If both sides are worn, damaged or cosmetically tired, a complete crank arm set may make more sense.
Useful for commuter and utility e-bikes
This crank family appears on practical Shimano STEPS bikes built for transport, hybrid and city riding, so it makes sense for keeping an everyday e-bike on the road without overcomplicating the repair.
