Mountain and trail riders on a 1x10 drivetrain who want a big 46T low gear for steep climbs.

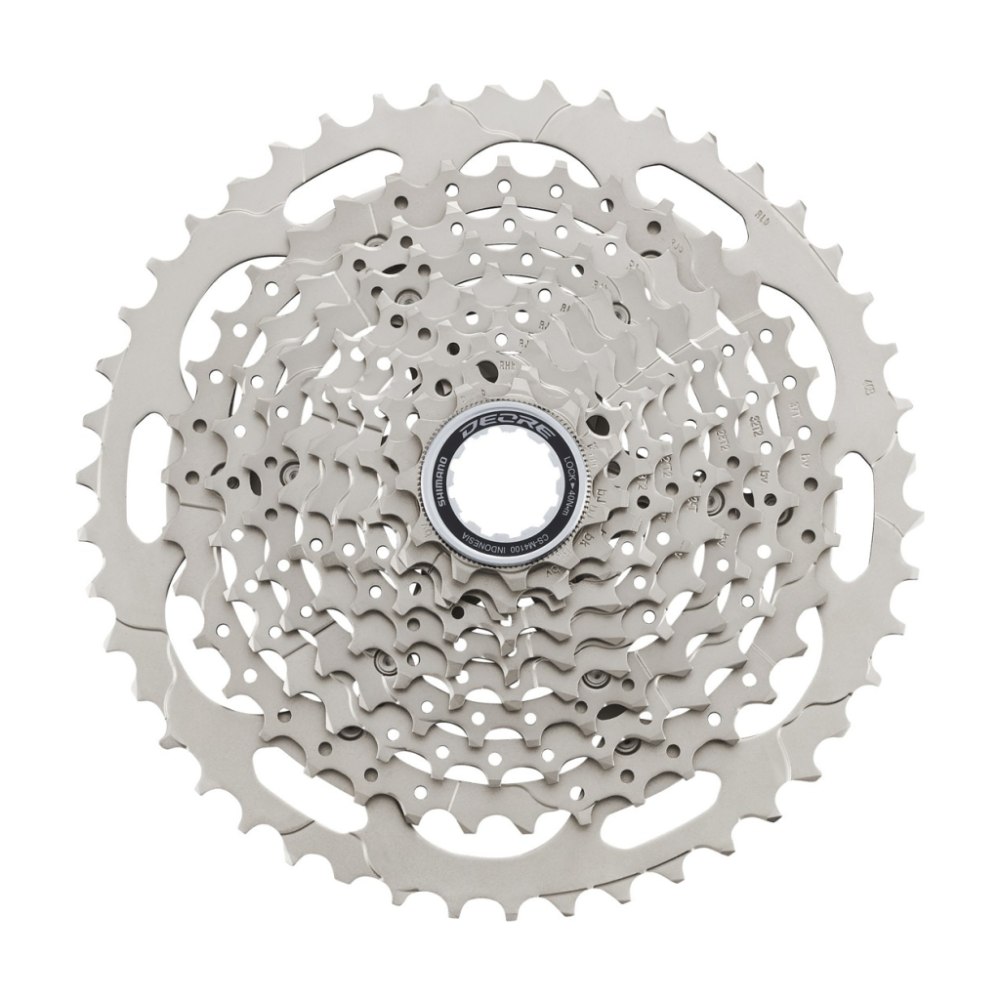

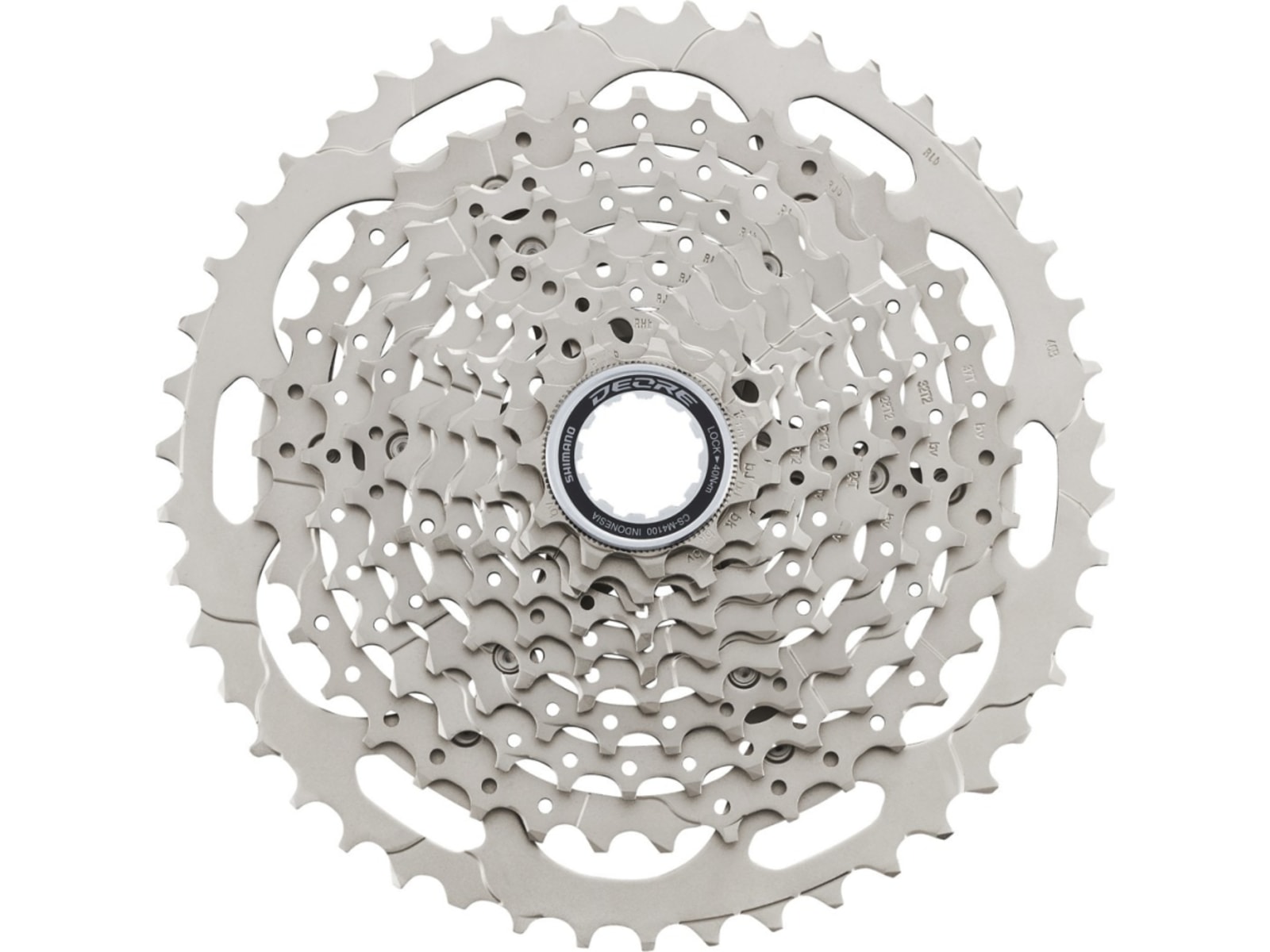

This is the DEORE CS-M4100-10 in the 11-46T spread: ten steel sprockets running 11-13-15-18-21-24-28-32-37-46T. Shimano says the cassette offers a wide range of gearing options, and that its lightweight sprocket carrier delivers smooth gear steps and precise shifting.
It fits Shimano HG spline M freehub bodies and runs on HG-X 10-speed chains. The 46T largest sprocket is listed for 1x10 setups with the RD-M5120-SGS derailleur, so check your rear derailleur before you order.
11-46T range
Ten sprockets from 11T to 46T (11-13-15-18-21-24-28-32-37-46T), a wide spread for steep climbs.
DEORE HG shifting
Shimano's HG tooth design and a lightweight sprocket carrier for smooth gear steps and precise shifting.
Plated steel sprockets
Ten steel sprockets on a steel spider arm, all plated, with a plated steel lock ring.
1x10 pairing
Shimano lists the 11-46T with the RD-M5120-SGS in single-chainring 1x10 drivetrains.
Cassette
Fit
HYPERGLIDE (HG)
Shimano's sprocket design, with shift ramps and tooth profiles placed to improve chain control and give fast, responsive indexed shifts.
Great for
Maybe not for
This is the 11-46T. Shimano also lists the CS-M4100-10 in 11-42T, which suits more derailleurs. Check that your rear derailleur handles a 46T largest sprocket, and use an HG-X 10-speed chain.
Match the derailleur
Shimano lists the 11-46T for 1x10 use with the RD-M5120-SGS (42T to 46T largest sprocket), while the RD-M4120-SGS tops out at 42T. Tighten the lock ring to the 40 N·m marked on it, and re-index the gears after the swap.
