Shimano · Crankset (2x, square taper)
Altus 2x crankset with 36-22T rings and 175 mm arms, for 7 and 8-speed.
$54.95
PriceIn stock, ready to ship

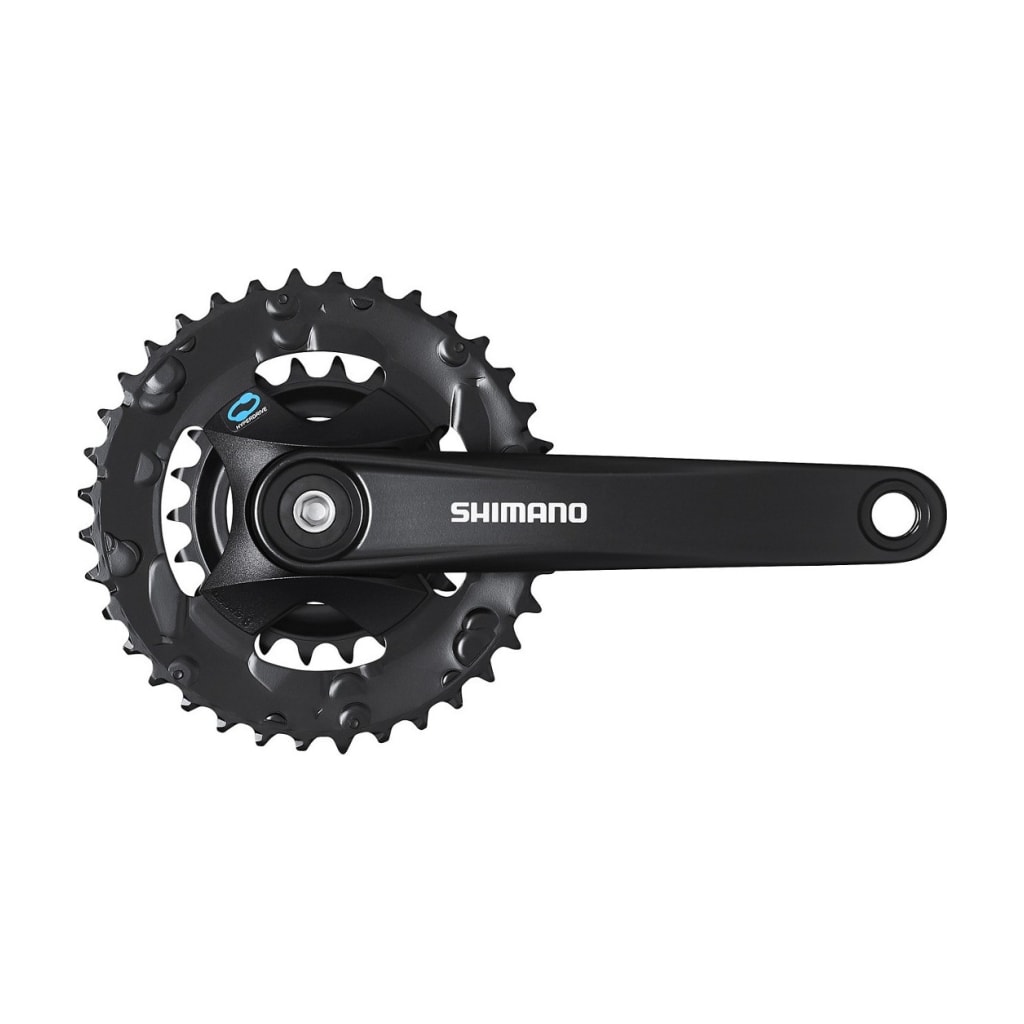

Shimano's FC-M315-2 is a 2x square-taper crankset for 7 and 8-speed drivetrains. This one has 36-22T chainrings and 175 mm arms, in black.
Sold by Ashburton Cycles
Verified store
Price
$54.95
Speeds
7 and 8-speed
Chainrings
36-22T
Crank arm length
175 mm
The FC-M315-2 is a two-ring mountain bike crankset with 36-22T chainrings, made for 7 and 8-speed drivetrains with HG 8/7/6-speed chains. The arms fit a square-taper bottom bracket, so you need a square-taper cartridge bottom bracket. Shimano recommends the BB-UN101 with an LL123 axle length for 68 or 73 mm threaded shells.
Shimano's HYPERDRIVE system pairs SG-X chainrings with a Wide Link front derailleur and an HG chain to improve chain control, which helps front shifting most in severe off-road conditions. The crank supplies the rings; the derailleur and chain are separate. The chain line is 48.8 mm, and it is designed for 135 mm quick-release or 142 mm thru-axle rear hubs. There is no chain guard option. The FC-M315-B2 is a different crank with a wider chain line, so check the model name if you are matching your frame.
Riders replacing a worn or bent crankset on a 7 or 8-speed bike that uses a square-taper bottom bracket.
36-22T, two rings
A 22T inner ring gives a low gear for climbing, with a 36T outer ring for flatter riding.
For 7 and 8-speed
Shimano lists 8/7-speed compatibility with HG 8/7/6-speed chains.
HYPERDRIVE shifting
SG-X chainrings and the HYPERDRIVE system are designed for consistent front shifting off-road.
Square-taper fit
Recommended bottom bracket is the BB-UN101 (LL123) for 68 or 73 mm threaded shells.
Every detail as listed by the manufacturer.
Shimano · Crankset (2x, square taper)
Altus 2x crankset with 36-22T rings and 175 mm arms, for 7 and 8-speed.
$54.95
In stockSpeeds
7 and 8-speed
Chainrings
36-22T
Crank arm length
175 mm
Chain line
48.8 mm
Shimano's FC-M315-2 is a 2x square-taper crankset for 7 and 8-speed drivetrains. This one has 36-22T chainrings and 175 mm arms, in black.
The FC-M315-2 is a two-ring mountain bike crankset with 36-22T chainrings, made for 7 and 8-speed drivetrains with HG 8/7/6-speed chains. The arms fit a square-taper bottom bracket, so you need a square-taper cartridge bottom bracket. Shimano recommends the BB-UN101 with an LL123 axle length for 68 or 73 mm threaded shells.
Shimano's HYPERDRIVE system pairs SG-X chainrings with a Wide Link front derailleur and an HG chain to improve chain control, which helps front shifting most in severe off-road conditions. The crank supplies the rings; the derailleur and chain are separate. The chain line is 48.8 mm, and it is designed for 135 mm quick-release or 142 mm thru-axle rear hubs. There is no chain guard option. The FC-M315-B2 is a different crank with a wider chain line, so check the model name if you are matching your frame.
Riders replacing a worn or bent crankset on a 7 or 8-speed bike that uses a square-taper bottom bracket.
36-22T, two rings
A 22T inner ring gives a low gear for climbing, with a 36T outer ring for flatter riding.
For 7 and 8-speed
Shimano lists 8/7-speed compatibility with HG 8/7/6-speed chains.
HYPERDRIVE shifting
SG-X chainrings and the HYPERDRIVE system are designed for consistent front shifting off-road.
Square-taper fit
Recommended bottom bracket is the BB-UN101 (LL123) for 68 or 73 mm threaded shells.
